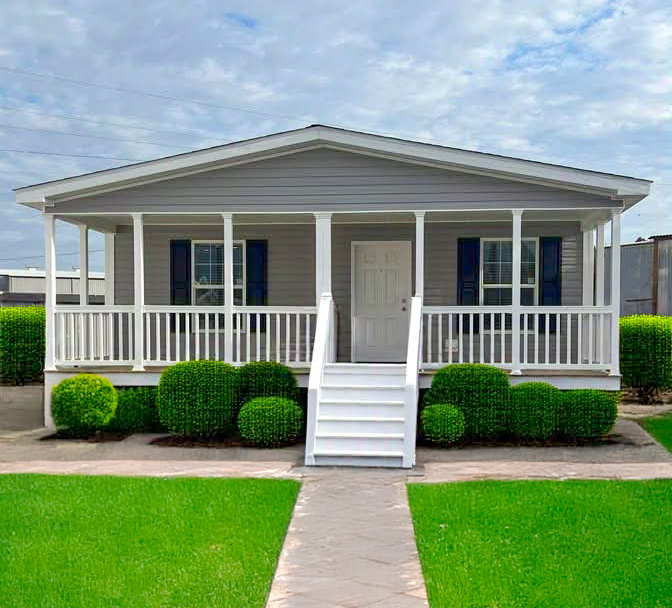

Lake Manor Series – Multi-Sections

Standard Features

CONSTRUCTION:

• Steel Frames (size per print)
• Wind Zone I Construction
• Energy Star Climate Zone Envelope I & II
• Foamcore Siding Backer
• 7/16” OSB Roof Sheathing
• 2x6 #3 Floor Joists 16” OC (24’ & 28’ Wides)
• 2x8 #2 Floor Joists 16” OC (32’ Wides)
• 2x4 Exterior Walls 16” OC
• 2x3, 24” OC Interior Studs Throughout
• 2x4, 24” OC Double Mate Line
• 8’ Flat Ceilings
• Dropped Headers at all Mate Wall Openings
• 19⁄32” T&G OSB Floor Decking
• 24” OC, HUD Trusses (28’ Wides - 36” KP/ 32’ Wides - 38” KP)
• Removable Hitch & Recessed Frames
• Stipple Ceiling Texture
• Nominal 12” Overhangs

PLUMBING AND HEATING:

• Carrier Electric Furnace Per Print
• Standard In-line Heat Registers Per Print
• 50 Gallon Electric Water Heater
• PEX Water Supply Lines
• Whole House Shut-Off Valve (location per print)
• Water Shut-Off Valves at All Toilets & Sinks
• Plumb & Wire for Washer & Dryer
• Drop Out Crossover Ducts
• (1) Exterior Water Faucet on Rear (per print)

ELECTRICAL:

• Total Electric & 200 AMP Service
• 40 Space Panel Box
• Light Fixtures at All Exterior Doors
• (1) Exterior GFI Electrical Receptacle – (location per print)
• GFI Receptacles in Kitchen and Baths
• Programmable Thermostat
• LED Fixtures T/O

EXTERIOR:

• Double 5 Vinyl Siding
• 25 Year Fiberglass Shingles
• Low E Vinyl Windows w/ Grids (No Sills)
• 38x82 Fiberglass Front Door w/ Dead Bolt
• 34x76 Rear Out-Swing Cottage Door (w/ 9-Lites)
• Shutters - Front Door Side Only (or Hitch End of End Load Units)
• Metal Fascia

CABINETS:

• 30” Overhead Cabinet Designs per Print
• 3⁄4” MDF Stiles w/ Pocket Screw Construction
• Beare Board Side Panels
• Shelf Above Refrigerator
• Lined Overhead Cabinets
• Hardwood Shaker Cabinet Doors (Crescent Oak) w/ 2-Hole Pulls
• Concealed Cabinet Door Hinges (Soft Close)
• Matching Toe-Kicks in Kitchens (Same as Cabinet Color)
• 1⁄2 Center & Finished Bottom Shelf in Base Cabinets
• Cabinet Stile Cap
• Drawers over Doors
• Standard Style Vanities
• Post Form Countertops

KITCHENS & BATHS:

• Stainless Steel Kitchen Sink w/ Dual Knob Brushed Nickel Faucet
• Standard Mirrors in Baths w/ Clips (No Trim)
• Fiberglass Tubs/Showers Hall Bath w/ Metal Brushed Nickel Faucets
• 1-pc 42x60 Garden Tub in Master Bath
• LED Lights Above Each Sink
• Porcelain Sinks w/ Single-Lever Brushed Nickel Faucets

INTERIOR:

• 1⁄2” Finished Sheetrock w/ Square Corners T/O Including Closets
• 2 1/4” Flat MDF Trim Package - Ceiling, Windows, Doors & Base
• Vented Wire Shelving in Closets & Over Washer/Dryer Areas
• White 3-Panel Craftsman Interior Doors
• Brushed Nickel Door Knobs & (3) Mortised Hinges

FLOORING COVERING:

• “Congoleum Diamondflor®” No Wax Vinyl Flooring T/O

APPLIANCES:

• Stainless Steel 30” Standard Range Hood
• Stainless Steel 18 cu ft Frost-Free Refrigerator w/ Icemaker
• Stainless Steel 30” Free Standing Electric Range

WARRANTY:

• 7-Year Warranty
